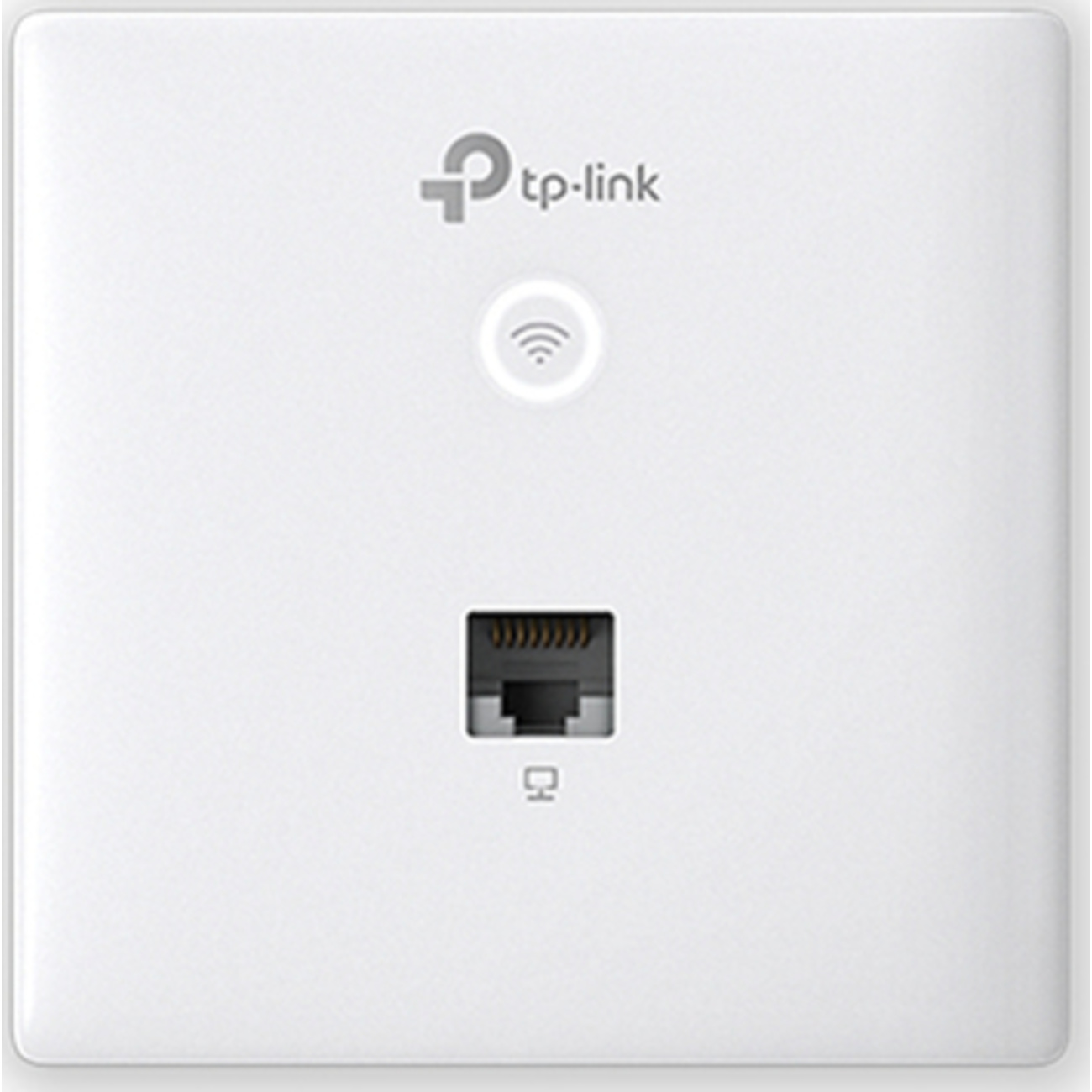

TP-Link Omada WL-AP Access Point EAP230-Wall AC1200
Unprecedented thin design with 11mmomada eap230-wallac access pointprivate connection for every room.eap230-wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed wi-fi connection for every user. Mu-mimo + dual-band: faster connection for more devices802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 mbps and 2.4 ghz and 5 ghz wireless bands deliver simultaneous high-speed internet access to various devices.seamlessly blends with any décor the same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.high-speed gigabit portequipped with a gigabit port to deliver the fastest possible wired transmission.effortless deployment with power over ethernet802.3af/802.3at poe support means there’s no need for extra wiring. Plug in existing ethernet cables to transmit both power and data to your aps.quick, simple installation1.detach and remove the faceplate of the junction box.2.plug an ethernet cable in to the port.3.secure the access point to the wall using the provided screws.4.press the faceplate back into position.omada sdn—smarter cloud solution for business networkingomada software defined networking (sdn) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.easy management with the omada appfollow configuration instructions on the free omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Compliance certificates: RoHS, CE 5 GHz: Yes Frequency band: 2.4 - 5 GHz Maximum data transfer rate: 1167 Mbit/s MIMO: Yes Quality of Service (QoS) support: Yes Ethernet LAN data rates: 100, 10, 1000 Mbit/s Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11b, IEEE 802.3at 2.4 GHz: Yes Virtual LAN features: VLAN mapping, Port-based VLAN Maximum data transfer rate (2.4 GHz): 300 Mbit/s Automatic channel selection: Yes Band steering: Yes Maximum data transfer rate (5 GHz): 867 Mbit/s Rate limiting: Yes Wi-Fi Multimedia (WMM)/(WME): Yes VLAN support: Yes Automatic channel scanning: Yes Cabling technology: 10/100/1000Base-T(X) MIMO type: Multi User MIMO Transmitting power (CE): 20 - 23 dBm 6 GHz: No BeamForming: Yes Product colour: White LED indicators: Operation Reset button: Yes Placement: Wall Power over Ethernet (PoE): Yes Power consumption (max): 25.5 W Power consumption (typical): 9 W Security algorithms: 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, 64-bit WEP, WPA2-Enterprise, SNMPv2, 128-bit WEP, SNMP MAC address filtering: Yes Access Control List (ACL): Yes Number of SSID supported: 16 Service Set Identifier (SSID) features: Multiple SSIDs Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Operating temperature (T-T): 0 - 40 °C Storage relative humidity (H-H): 5 - 90% Web-based management: Yes Syslog: Yes Depth: 86.8 mm Width: 86.8 mm Height: 30.2 mm Package width: 118 mm Package depth: 130 mm Package weight: 210 g Package height: 47 mm Quick start guide: Yes Mounting kit: Yes Number of products included: 2 pc(s) Secure File Transfer Protocol (SFTP) using SSH v2: Yes Ethernet LAN (RJ-45) ports: 1 WAN connection: Ethernet (RJ-45) Antenna type: Internal Antenna gain level (max): 3.6 dBi Antennas quantity: 2 Antenna features: Integrated antenna Harmonized System (HS) code: 85176990 Sustainability certificates: RoHS, CE Sustainability compliance: Yes
TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Compliance certificates: RoHS, CE 5 GHz: Yes Frequency band: 2.4 - 5 GHz Maximum data transfer rate: 1167 Mbit/s MIMO: Yes Quality of Service (QoS) support: Yes Ethernet LAN data rates: 100, 10, 1000 Mbit/s Networking standards: IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11b, IEEE 802.3at 2.4 GHz: Yes Virtual LAN features: VLAN mapping, Port-based VLAN Maximum data transfer rate (2.4 GHz): 300 Mbit/s Automatic channel selection: Yes Band steering: Yes Maximum data transfer rate (5 GHz): 867 Mbit/s Rate limiting: Yes Wi-Fi Multimedia (WMM)/(WME): Yes VLAN support: Yes Automatic channel scanning: Yes Cabling technology: 10/100/1000Base-T(X) MIMO type: Multi User MIMO Transmitting power (CE): 20 - 23 dBm 6 GHz: No BeamForming: Yes Product colour: White LED indicators: Operation Reset button: Yes Placement: Wall Power over Ethernet (PoE): Yes Power consumption (max): 25.5 W Power consumption (typical): 9 W Security algorithms: 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, 64-bit WEP, WPA2-Enterprise, SNMPv2, 128-bit WEP, SNMP MAC address filtering: Yes Access Control List (ACL): Yes Number of SSID supported: 16 Service Set Identifier (SSID) features: Multiple SSIDs Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Operating temperature (T-T): 0 - 40 °C Storage relative humidity (H-H): 5 - 90% Web-based management: Yes Syslog: Yes Depth: 86.8 mm Width: 86.8 mm Height: 30.2 mm Package width: 118 mm Package depth: 130 mm Package weight: 210 g Package height: 47 mm Quick start guide: Yes Mounting kit: Yes Number of products included: 2 pc(s) Secure File Transfer Protocol (SFTP) using SSH v2: Yes Ethernet LAN (RJ-45) ports: 1 WAN connection: Ethernet (RJ-45) Antenna type: Internal Antenna gain level (max): 3.6 dBi Antennas quantity: 2 Antenna features: Integrated antenna Harmonized System (HS) code: 85176990 Sustainability certificates: RoHS, CE Sustainability compliance: Yes
